Wiha 41246 Automatic Crimp Tool

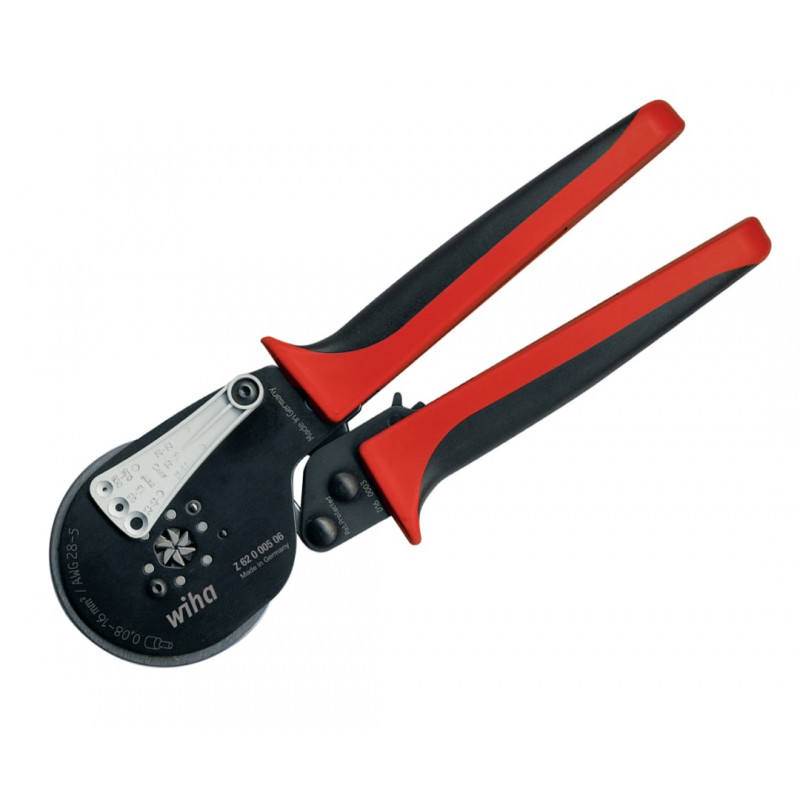

Wiha Automatic Crimp Tool - 41246

The Wiha Automatic Crimp Tool (41246) is a versatile and efficient tool for processing wire-end sleeves with and without insulating collars, conforming to DIN 46228 and EN 50027 standards. This single tool effectively replaces two separate crimp pliers, thanks to its wide crimping range. Its hex crimping action minimizes waste and prevents smaller sleeves from snagging. The integrated lever allows for manual interruption of the crimping process at any time, enhancing safety. Ergonomic, impact-absorbing plastic handles ensure comfortable and fatigue-free operation.

Features

• Processes wire-end sleeves with and without insulating collars (DIN 46228, EN 50027)
• Wide crimping range (0.08 - 16 mm²)
• Hex crimping action minimizes waste and prevents snagging
• Integrated lever for manual interruption of the crimping process
• Comfortable, impact-absorbing plastic handles
• Prevents crimping of the plastic cover, ensuring process safety

Specifications

• Crimping Range (Empty): 0.08-16 mm²
• Crimping Range (Twin): Up to 10 mm²
• Area Stripped (Min. - Max.): 28-5 AWG
• Overall Length: 210 mm
