Knipex 16 90 130 SB Universal Stripping Tool for Building & Industrial Cables

Knipex 16 90 130 SB Universal Stripping Tool for Building & Industrial Cables

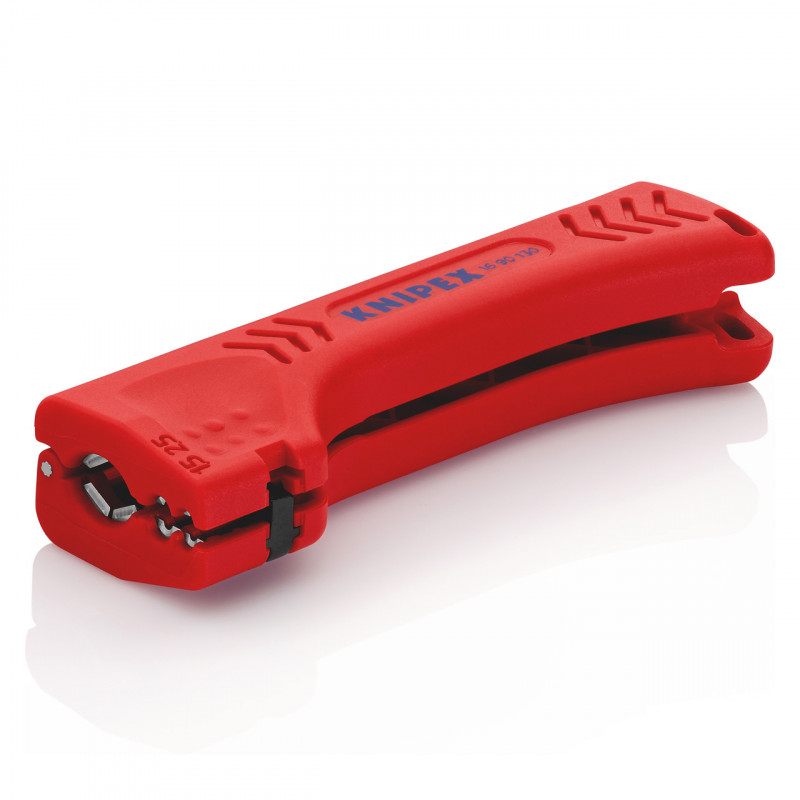

The Knipex 1690130SB universal stripping tool is a compact and robust solution for stripping round and damp-proof installation cables in building and industrial applications. Its 130mm length makes it ideal for confined spaces and hard-to-reach areas. Designed to handle cables with diameters between 8.0 and 13.0 mm (e.g., 3 x 1.5 mm² up to 5 x 2.5 mm²), this tool simplifies the stripping process for various cable types and sizes.

Features

• Opening spring and locking device
• Suitable for use in conduit and distribution boxes
• Fibreglass-reinforced plastic body
• Designed for confined and hard-to-reach areas
• Especially effective with larger cross-sections and difficult insulating materials
• No blade adjustment for cutting depth is required
• Stripping device for 1.5 mm² and 2.5 mm² conductors and strands
• Two-way length stop (for both right and left-handed users)
• Fastening device on the handle end (drop protection)

Specifications

• Part number: 16 90 130 SB
• Dimensions: 130 x 88 x 32 mm
• Stripping capacity (mm²): 1.5 / 2.5 mm²
• Stripping capacity (Ø): 8 – 13 mm
• Cable type: Round cable (e.g., 3 x 1.5 mm² up to 5 x 2.5 mm²)
• Weight: 0.47 kg
