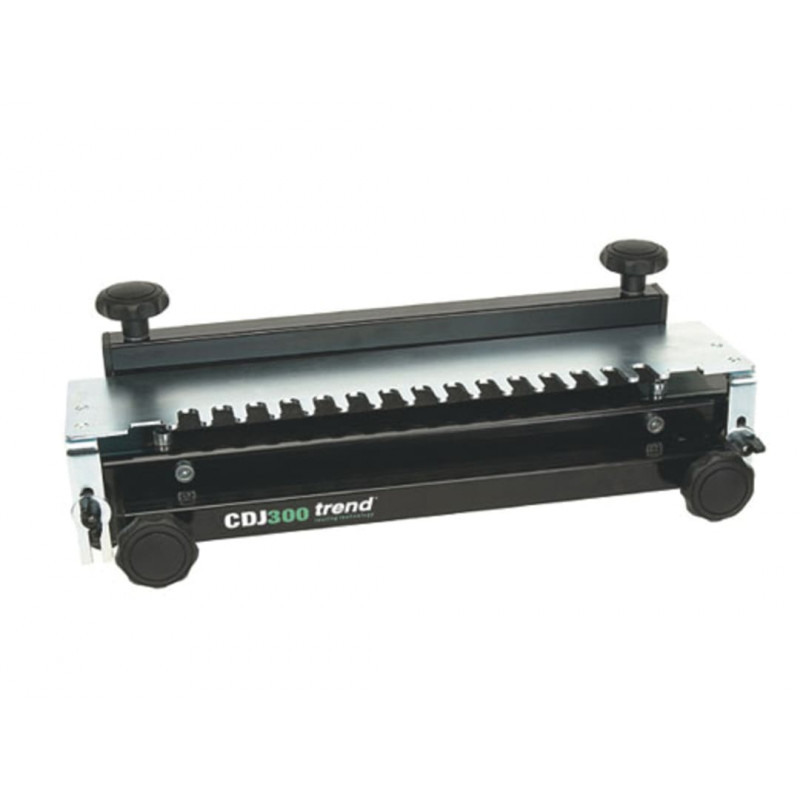

Trend CDJ300 Craft Dovetail Jig 300mm

Trend Craft Dovetail Jig 300mm (CDJ300)

Create accurate and elegant dovetail joints with ease using the Trend CDJ300 Craft Dovetail Jig. This precision-made jig cuts 12.7mm (1/2in) wide half-blind or rebated dovetails in a single operation. The laser-cut zinc-plated steel template ensures consistent results, and the jig is supplied with a 1/4in shank TCT 104° Dovetail Cutter and a 15.8mm Guide Bush. Note that a Unibase and fine height adjuster may be required for some router models.

Features

• Creates 12.7mm (1/2in) wide half-blind or rebated dovetails.
• Precision laser-cut zinc-plated steel template for accuracy.
• Includes 1/4in shank TCT 104° Dovetail Cutter and 15.8mm Guide Bush.
• Suitable for a variety of woodworking projects.
• Maximum workpiece width: 300mm

Specifications

• MPN: CDJ300
• EAN: 5027654525951
• Dovetail Size: 12.7mm (1/2in)
• Workpiece Width Max: 300mm
• Workpiece Thickness Min: 12mm
• Workpiece Thickness Max: 25mm
• Guide Bush Size: 15.8mm
• Router Base Diameter Max: 180mm
