Trend HINGE/JIG Hinge Jig

Trend Hinge Jig - HINGE/JIG

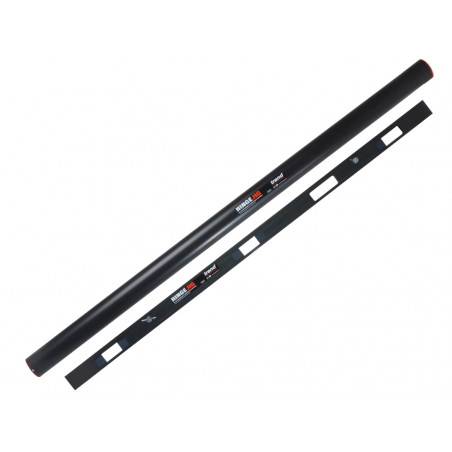

The Trend Hinge Jig is a portable template jig designed for accurately recessing hinges into wooden doors and frames. Ideal for both on-site and workshop use, this jig significantly increases productivity while ensuring consistently clean and precise results. Eliminate the need for traditional marking-out methods; simply use the hinge itself as the pattern. Quick and easy to set up, this jig is perfect for creating perfect hinge recesses every time.

Features

• Portable and easy to use template jig
• Eliminates the need for traditional marking out
• Creates clean and accurate recesses every time
• Suitable for timber-based doors and square butt hinges
• Four apertures for fire door applications
• Angled position slots to prevent creep
• Includes: 4 x Apertures, 2 x Bradawls, 1 x 16mm Guide Bush, 1 x T-Handle Hex Key, 1 x 4mm Spacing Gauge and 1 x Plastic Storage Tube
• Uses a light duty router with 1/4 inch collet (router and bit not included)
• Requires a long reach router cutter (12mm diameter with 70mm overall length)

Specifications

• Hinge Sizes: Length Min/Max: 67-127mm (2.5-5in), Width Min/Max: 9.5-35mm (3/8-1.3/8in)
• Door Sizes: Height Min/Max: 1955-2032mm (6ft 5in - 6ft 10in), Thickness Min/Max: 16-44mm
