Trend H/JIG/A 2 Part Hinge Jig

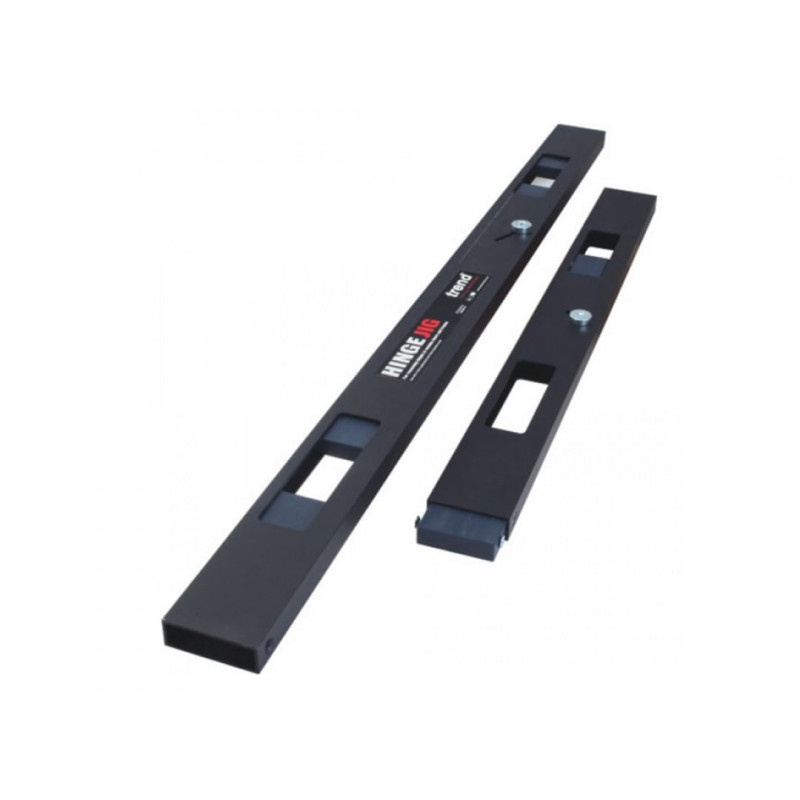

Trend 2 Part Hinge Jig H/JIG/A

The Trend 2 Part Hinge Jig H/JIG/A is a portable template set designed for accurately and quickly recessing hinges in wooden doors and frames. Ideal for both on-site and joinery shop use, this jig increases productivity and eliminates the need for traditional marking out. Simply use the hinge itself as the pattern for clean, accurate recesses every time. Suitable for timber-based doors and square butt hinges.

Features

• Easy-to-use with minimal setup time.
• Uses the hinge as the pattern for quick and simple setup.
• Creates clean and accurate recesses.
• Four apertures for fire door requirements.
• Angled position slots to prevent creep.
• Suitable for timber-based doors and square butt hinges.
• Requires a light-duty router with a 1/4 inch collet and a long reach router cutter (12mm diameter with 70mm overall length).

Specifications

• Hinge Sizes:
  • Length (min): 67 mm (2 5/8 in)
  • Length (max): 127 mm (5 in)
  • Width (min): 9.5 mm (3/8 in)
  • Width (max): 35 mm (1 3/8 in)
• Door Sizes:
  • Height (min): 1955 mm (6 ft 5 in)
  • Height (max): 2100 mm (6 ft 10 in)
  • Thickness (min): 16 mm (5/8 in)
