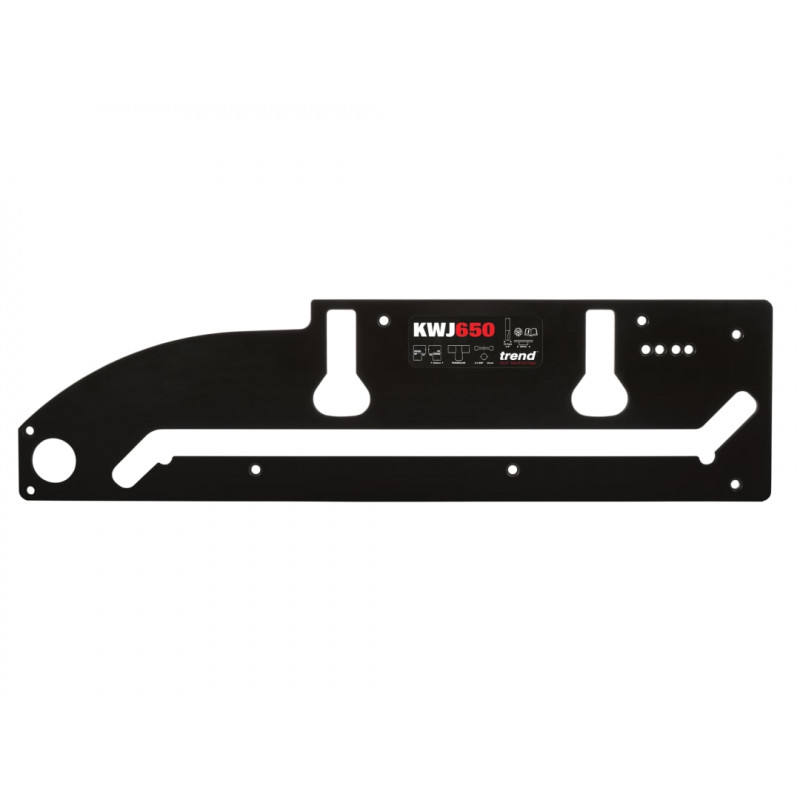

Trend KWJ650 Kitchen Worktop Jig with Peninsular Cut 650mm

Trend Kitchen Worktop Jig with Peninsular Cut 650mm (KWJ650)

The Trend Kitchen Worktop Jig KWJ650 is a robust and efficient tool designed for precise cuts in kitchen worktops up to 650mm wide. Made from durable, CNC-machined Compact Grade High-Pressure Laminate (12mm thick), this jig significantly speeds up the worktop joining process. Complete both parts of a joint in just 15 minutes, including setup time.

Features

• Cuts left and right-hand corners
• Creates a 400mm radius peninsular joint
• Cuts a 35mm kitchen door hole
• Fixed lengths for 600mm, 616mm, 635mm and 650mm wide worktops
• Handles worktops up to 40mm thick, with or without anti-drip postformed edge
• Cuts 2 open-ended bolt recesses (dog bone style) for 150mm bolts
• Ø10mm ABS plastic pins with tapered shoulders for a secure, three-point contact and easy setup

Specifications

• Brand: Trend
• MPN: KWJ650
• EAN: 5027654063422
• Material: Compact Grade High-Pressure Laminate
• Thickness: 12mm
• Maximum Worktop Width: 650mm
• Maximum Worktop Thickness: 40mm
