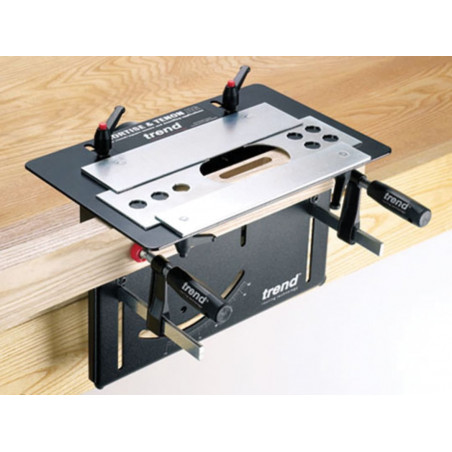

Trend MT/JIG Mortice & Tenon Jig

Trend Mortice & Tenon Jig MT/JIG

The Trend Mortice & Tenon Jig MT/JIG allows you to create precise mortise, tenon, and dowel joints using a router. Perfect for crafting high-quality joints in cabinets, chairs, and tables, this jig features a single setup system for both mortise and tenon cuts, ensuring perfectly fitting joints every time. It's fully adjustable for compound angle joints up to 45°, offering versatility for a wide range of projects.

Featuring reversible templates, you can produce both round and square end tenons, and achieve accurate dowelling. The jig accommodates mortise and tenon sizes from 1/4in (6.35mm) to 5/8in (15.9mm). Note that a Unibase may be required for compatibility with certain router makes and models. All tenons are cut using a 5/8 inch diameter straight cutter (Ref. C026), with tenon width adjusted using different guide bush diameters. The jig boasts CNC precision-manufactured plates and body for superior accuracy and durability.

Guide bushes are included, but cutters are sold separately.

Features

• Creates mortise, tenon, and dowel joints with a router
• Single setup for both mortise and tenon
• Fully adjustable for compound angles up to 45°
• Reversible templates for round and square tenons
• Handles mortise and tenon sizes from 1/4in (6.35mm) to 5/8in (15.9mm)
• CNC precision-manufactured for accuracy and durability
• Guide bushes included

Specifications

• Material Thickness: 12 - 47mm
• Tenon Thickness: 4.8 - 16mm
• Angle Tilt Compound: -10° to 45°
