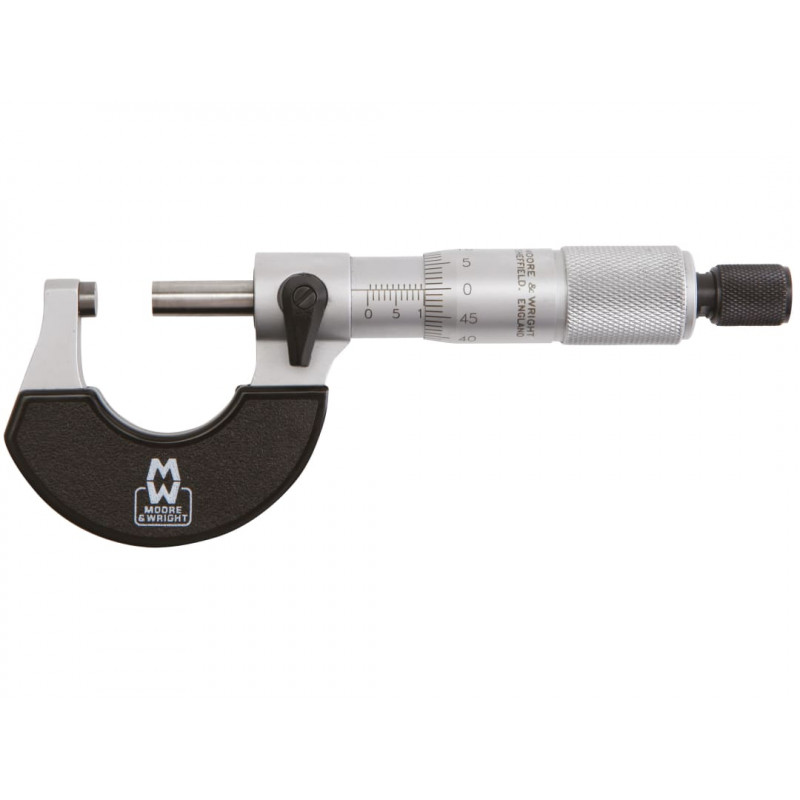

Moore & Wright 1961M Traditional External Micrometer 0-25mm/.01mm

1961M Traditional External Micrometer 0-25mm/.01mm

The Moore & Wright 1961M Traditional External Micrometer is a high-quality measuring instrument built for precision and ease of use. Its pearl chrome plated frame with insulating pads, combined with tungsten carbide measuring faces and a tapered bow frame, ensures durability and accuracy. The inclusion of a 'speeder' type ratchet, locking lever, and adjusting key simplifies operation. This micrometer is manufactured to exacting standards (BS870, DIN 863/1, ISO 361), guaranteeing reliable performance. Supplied in a protective plastic case.

Features

• Pearl chrome plated frame with insulation pads
• Tungsten carbide measuring faces
• Tapered bow frame
• 'Speeder' type ratchet
• Locking lever
• Adjusting key
• 6.5mm spindle diameter
• Supplied in plastic pocket case

Specifications

• Micrometer Range: 0-25mm
• Resolution: 0.01mm
• Measuring Faces Flatness: 0.001mm
• Measuring Faces Parallelism: 0.003mm
• Measuring Faces Accuracy: 0.003mm
