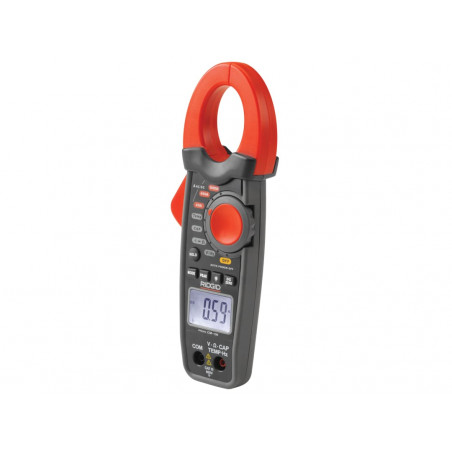

RIDGID 37428 CM-100 Micro Clamp Meter

RIDGID CM-100 Micro Clamp Meter 37428

The RIDGID CM-100 Micro Clamp Meter is a versatile and powerful tool for electricians and technicians. This True RMS, auto-ranging digital clamp meter boasts a large capacity and measuring range, easily clamping around cables up to 30mm O.D. and measuring current up to 1000A AC/DC. Beyond its clamping capabilities, it functions as a full-featured multimeter, providing accurate readings across a variety of measurements on its large, backlit LCD display. Its slim, double-molded design allows for comfortable one-handed operation, even in tight spaces. The CM-100 comes complete with a soft carrying case, test leads, Type K temperature probe, and a 9V battery.

Features

• True RMS measurement for accurate readings
• Auto-ranging for simplified operation
• Large 4000-count backlit LCD display for easy readability
• Clamps cables up to 30mm O.D.
• Measures AC/DC current up to 1000A
• Slim, double-molded design for comfortable one-handed use
• Multiple functions including voltage, resistance, capacitance, frequency, diode test, continuity test, and temperature measurement
• Data and peak hold functionality
• Bar graph display
• Auto power-off after 20 minutes
• Includes soft carrying case, test leads, Type K temperature probe, and 9V battery
• Overload protection: CAT III 600V
• Automatic polarity indication

Specifications

• Power Source: 9V battery (included)
• Display: 4000 Count backlit LCD
• Clamp Size: Max. 30mm O.D. cable
• Voltage AC/DC: 400mV - 600V
• Current AC/DC: 40A - 1000A
• Resistance: 400Ω - 40MΩ
• Capacitance: 4nF - 40mF
• Frequency: Up to 4kHz
• Diode Test: 1.5V
• Continuity Test: 35Ω
• Temperature: -40°C - 1000°C
