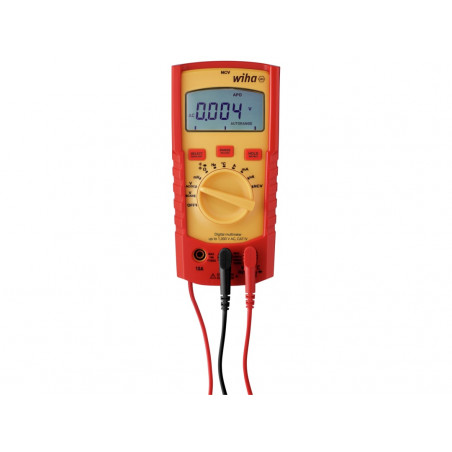

Wiha 45215 Digital Multimeter 1,000 V AC, CAT IV

Wiha Digital Multimeter 1,000V AC, CAT IV - 45215

The Wiha Digital Multimeter (MPN: 45215, EAN: 4010995452155) is a versatile and reliable tool for a wide range of electrical measurements. This single instrument allows you to measure voltage, current, resistance, frequency, capacitance, and temperature, as well as perform continuity and diode tests. Its large, backlit LCD display with data hold and bar graph ensures clear and quick readings, while automatic range selection simplifies operation. The multimeter accurately measures TRUE-RMS values and allows for the storage and comparison of measurement values, including minimum and maximum readings. Designed for safety, it conforms to CAT III 1000V AC and CAT IV 600V standards, making it suitable for work on building installations and low-voltage sources.

Features

• Measures voltage (AC/DC), current (AC/DC), resistance, frequency, capacitance, and temperature
• Continuity and diode testing capabilities
• Large, backlit LCD display with data hold and bar graph
• Automatic range selection
• TRUE-RMS measurement for accurate readings
• Stores and compares measurement values, including minimum and maximum readings
• CAT III 1000V AC / CAT IV 600V safety rating
• Audible signal for continuity checks

Specifications

• Current (AC/DC): 10A / 10A
• Voltage (AC/DC): 0-1000V / 0-1000V
• Resistance: 200MΩ
• Frequency: 60MHz
• Temperature Measurement: -200°C to 1350°C
• Capacitance: 60mF
• Contamination Level: 2
• Protection Class: IP40
• Operating Temperature: 0°C - 50°C
• Power: 2 x AAA Batteries (included)
• Standards: EN 61010-1, EN 61010-2-033, EN 61010-031, CE
