Dormer L113202 HSS Metric Drill & Tap Set (14 Piece)

Dormer L113202 HSS Metric Drill & Tap Set (14 Piece)

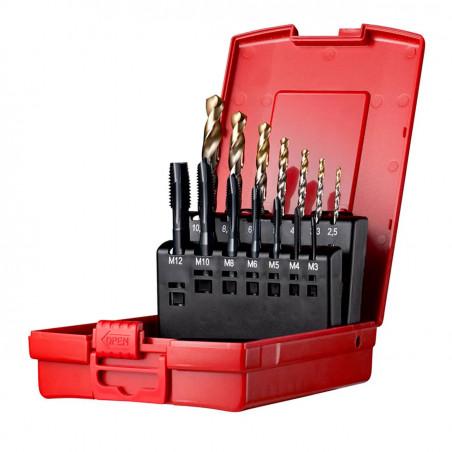

The Dormer L113202 is a comprehensive 14-piece drill and tap set, housed in a convenient plastic cassette. This set allows you to create ISO metric threads from M3 to M12. It includes seven HSS-E-PM steam-tempered spiral point taps with a chamfer form B and a 3.5-5xP second lead, and seven HSS TiN-tip coated jobber length drills with straight shanks. These drills are designed for creating the recommended pre-machined hole diameters for 2.5xD through-hole threading in general-purpose applications.

Features

• 14-piece set for creating ISO metric threads from M3 to M12
• Includes 7 HSS-E-PM steam-tempered spiral point taps
• Includes 7 HSS TiN-tip coated jobber length drills
• Convenient plastic cassette storage
• Suitable for general-purpose applications

Specifications

• Tap Styles: E001
• Tap Diameters: M3, M4, M5, M6, M8, M10, M12
• Drill Styles: A002
• Drill Diameters: 2.5, 3.3, 4.2, 5.0, 6.8, 8.5, 10.2
• Number of Items: 14
• Set Number: 202
