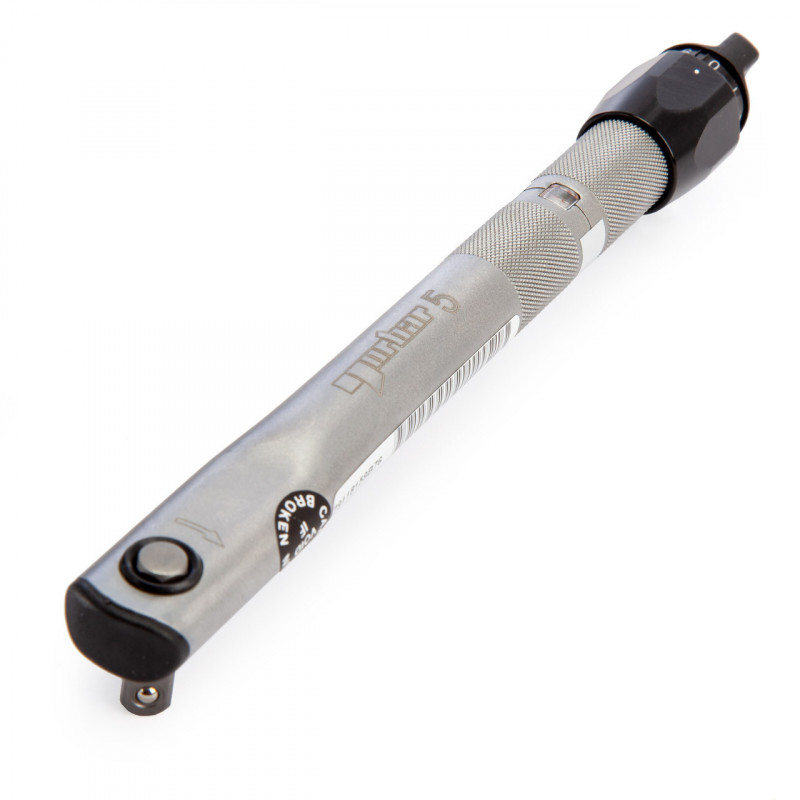

Norbar 13001 Model 5 Female Hex Torque Wrench 1 – 5 N·m 1/4”

Norbar 13001 Model 5 Female Hex Torque Wrench 1 – 5 N·m 1/4”

The Norbar 13001 Model 5 is a highly accurate (±6%) torque wrench featuring interchangeable 1/4 inch hexagon bits (ISO 1173:2001 Form C drive bits). Its compact 170mm length and non-length dependent design ensure accuracy regardless of hand position. This wrench is supplied in a convenient storage case with space for additional bits and an optional stepless ratchet. It also includes a Declaration of Conformance meeting ISO 6789-1:2017 requirements.

Features

• High accuracy (±6%)
• Interchangeable 1/4 inch hexagon bits (ISO 1173:2001 Form C drive bits)
• Non-length dependent: maintains accuracy regardless of hand position
• Supplied in a storage case for convenient storage of bits and optional stepless ratchet
• Includes a Declaration of Conformance (ISO 6789-1:2017)

Specifications

• NATO number: 5120-99-313-3843
• Accuracy: ±6%
• Torque Range: 1.00 - 5.00 N·m (0.10 Increment)
• Length: 170 mm
• Drive Size: 1/4" Female Hexagon
• Torque Radius: 101.6 mm
• Weight: 0.12 Kg
• Ratchet Teeth: None
• Ratchet Type: Stepless
