Mini Clamp Meter

Faithfull Mini Clamp Meter - 90303320

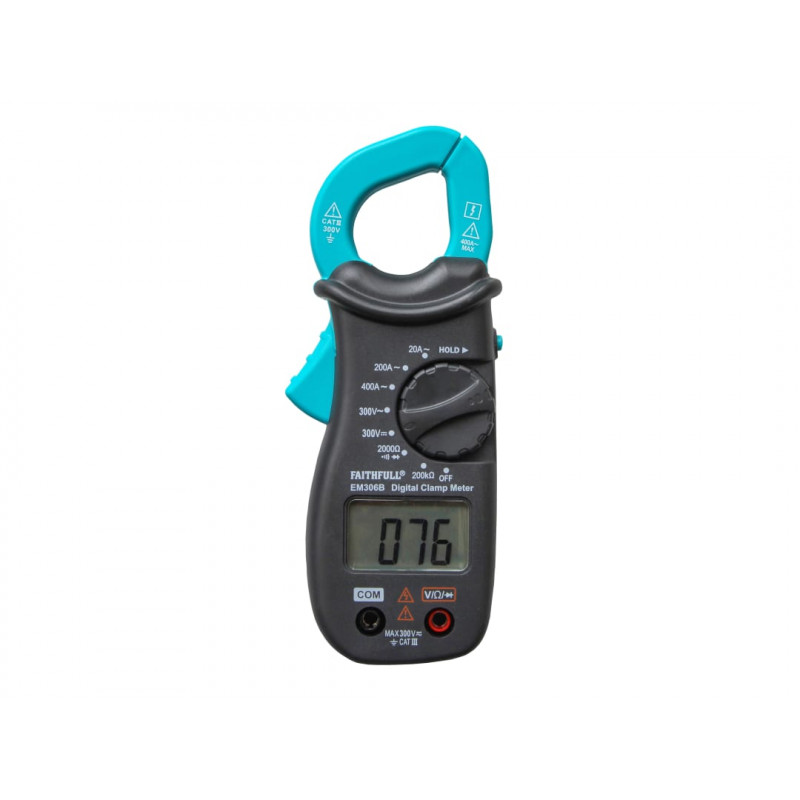

The Faithfull Mini Clamp Meter is a versatile and compact electrical testing tool perfect for various applications, from the laboratory to the home workshop. This handy device combines a digital multimeter with a current clamp, allowing for efficient measurement of current, voltage, and resistance. Its small size makes it ideal for accessing tight spaces.

Features

• 3.1/2 digit LCD display
• Data hold function
• Measures AC/DC voltage, AC current, resistance, and diodes
• Includes test leads and batteries
• Compact and lightweight design

Specifications

• Voltage DC: 300V, Input Impedance: 9MΩ
• Voltage AC: 300V, Frequency Response: 40~400Hz
• Current AC: 20/200/400A, Frequency Range: 50~60Hz
• Resistance: 2000/200kΩ
• Diode Check: Resolution: 1mV, Open Circuit Voltage about 3V
• Continuity: Less than 30Ω
• Clamp Capacity: 25mm
• Max. Measurable Conduction: 25mm
• Power: 3 x 3V CR2032 batteries (supplied)
• Dimensions: 151 x 65 x 34mm
• Weight: approx. 125g (excluding battery)
