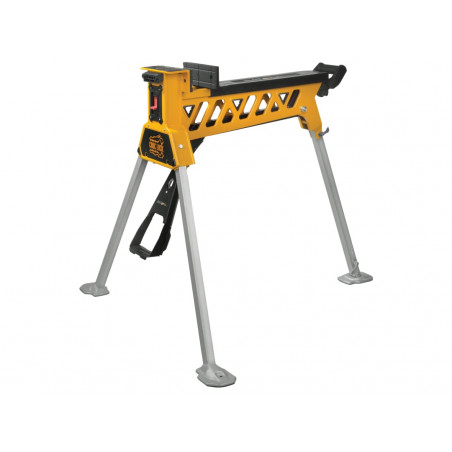

CROC LOCK Clamping Station

Batavia CROC LOCK Clamping Station (7059645)

The Batavia CROC LOCK Clamping Station is a versatile and powerful clamping system perfect for a wide range of applications. From holding doors and fences to securing wood, metal, and automotive components, this portable work station offers exceptional clamping strength up to 1000kg, allowing you to adjust the force precisely to suit your material. The foot-operated clamping system keeps your hands free for optimal control, while a quick-release lock knob ensures efficient operation. Its adaptable design allows for two operating positions; simply rotate the clamp rail 180° to increase the clamping range to a generous 95.6cm. The sturdy tripod base with foot pads provides stability even on uneven surfaces, and the unit folds away compactly for easy storage and transport.

Features

• Powerful clamping force up to 1000kg
• Foot-operated clamping system for hands-free operation
• Quick-release lock knob for efficient use
• Two operating positions (up to 95.6cm clamping range)
• Stable tripod base with foot pads
• Compact folding design for easy storage and transport
• Carry handles for convenient portability

Specifications

• Working Height: 875mm
• Size (Standing): 1010 x 1060 x 875mm
• Size (Folded): 797 x 302 x 325mm
• Jaw Size: 205 x 80mm
• Clamping Range: 0-956mm
• Clamping Force: 1000kg
• Max. Load: 150kg
• Weight: 19kg
