CROC LOCK Clamping Station

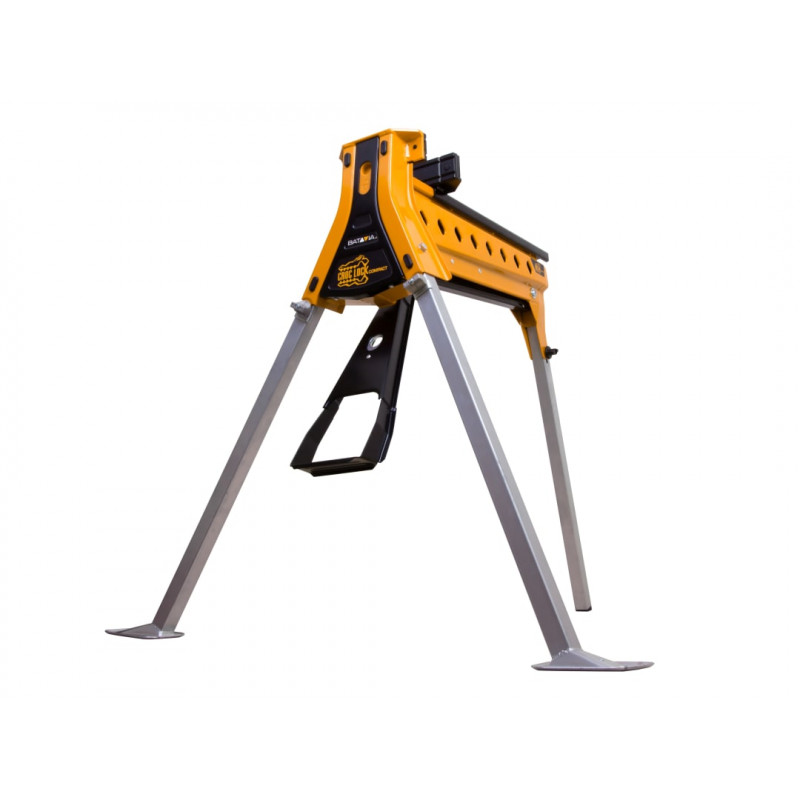

Batavia CROC LOCK Clamping Station (7061991)

The Batavia CROC LOCK Clamping Station is a versatile and powerful clamping system perfect for a wide range of applications. From holding doors and fences to woodworking, metalworking, and automotive components, this portable clamp offers exceptional strength and convenience. Its foot-operated clamping system keeps your hands free, while a quick-release lock knob ensures efficient operation. With a clamping force of up to 1000kg, you can easily adjust the pressure to suit the material being held. The unique design allows for two operating positions; simply turn the clamp rail 180° to increase the clamping range to a maximum of 95.6cm. The sturdy tripod base with foot pads provides stability on uneven surfaces, and the unit folds away compactly for easy storage and transport.

Features

• Powerful clamping force up to 1000kg
• Foot-operated clamping system for hands-free operation
• Quick-release lock knob for efficient use
• Two operating positions (up to 95.6cm clamping range)
• Stable tripod base with foot pads
• Easy assembly and compact folding design
• Carry handles for easy transportation

Specifications

• Working Height: 875mm
• Size (Standing): 1010 x 1060 x 875mm
• Size (Folded): 797 x 302 x 325mm
• Jaw Size: 205 x 80mm
• Clamping Range: 0-956mm
• Clamping Force: 1000kg
• Max. Load: 150kg
• Weight: 19kg
